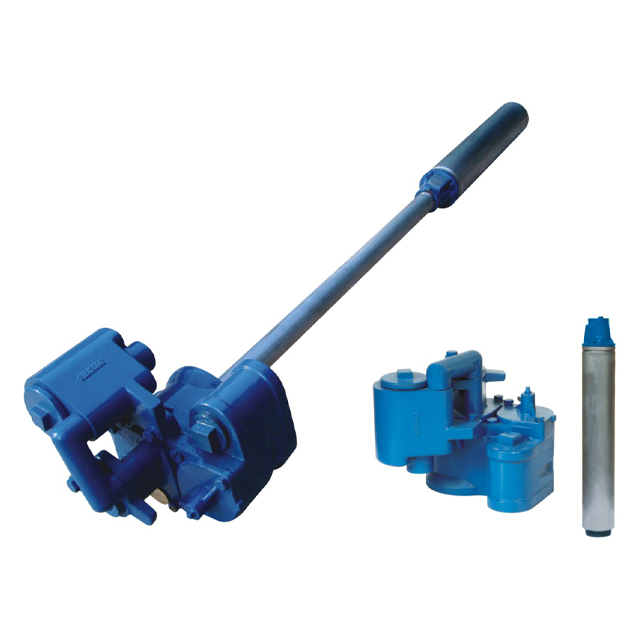

Product Description
• Compact structure, low noise, long time service.
• Simple and safe electrical connections.
• Easy installation and maintenance.
• Built with check valve, bypass valvev acuum valve
• For diesel, gasoline, kerosene, etc.
• Solve the pumping problem caused by oil gasfication
Technical Parameter
Ambient temperature | -25°C ~ +55°C |
Rating pressure | 0.1MPa |
Max. flowrate | 250L/min |
Rated voltage | AC 220V/380V |
Motor rated speed | 2820rmp |
Rated current | 9A/220V | 3.5A/380V |
Rated Power | 0.55kW/3/4HP | 1.1kW/1.5HP |
Adjustable pressure | 21KPa~207KPa |
Factory Pressure Range | 79KPa~93KPa |
Working pressure | >34KPa |
Ex-proof class | Exd IIbT4 |
Noise | ≤68dB(A) |
Fixation thread | NPT 4" |
Inlet | NPT 1.5" |
Outlet | NPT 2" |
Package | 1pc/2ctns |
N.W. | 47.5kgs |
G.W. | 53.5kgs |
Meas. | 38x31x38cm | 81x21.5x21.5cm |
